Hi, for those who are interested in how the chess pieces were made i'm gonna try to explain and show you here below. Just a little warning; i've taken as many pictures as i could because they tell a thousand words so i'm gonna post them all :))) But i also wrote some down to explain a bit further.

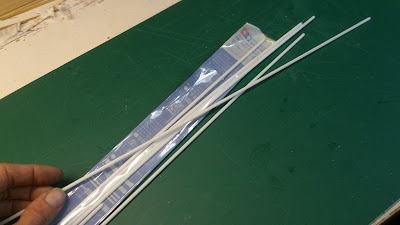

First the material. In this case 3 mm acrylic beams (product # 70133) made by Tamiya, a Japanese company that makes all sorts of (plastic) materials for RC models. Widely sold around the world so go look it up on the net to see if you can source it localy. I had these lying around as a leftover from a previous class project. And i have a hard time throwing things away, especially materials. Cos you never know when it can come in handy... Another way to get acrylic is to buy it as pen blanks, to turn pens out of, but then you need to cut it down first (or turn away loads and loads of material). Either way, although you can get it in the most amazing colors then, my guess was this white round stock was just perfect .

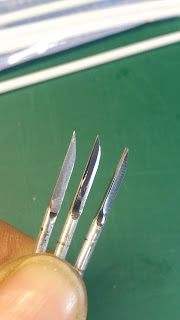

Then there are the tools i've used to turn. First these 3 cutters. Initially created to carve wood, but i've found them very suitable for this kind of work. Actually; i feel any tool is suitable, as long as it's sharp and or capable to take away material and last but not least... it needs to be small enough. These 3 are made out of HS steel, grind down to a decreasing width so i have a choice depending on the detail I want to add while turning.
This is everything i used, all together. From top to bottom;
- 2 scalpels that are useful to create very fine lines. the bottom scalpel has a round & curved edge that is useful too, to flatten and smooth out the surface of any tool marks, if there are any.
- Underneath, to the right, the 3 little cutters. Most of the work i did with these.
- To the left of them a pin vise with a needle point.
- Then 2 needle files, a rat's tail and flat one.
-And at the bottom a double sided (dental) probe that i've modified into 2 different shaped little scrapers.
And finally, but not in this pic, there's the polishing aids, micro mesh (sand-) paper and polish compound in use with cloth.
The lathe is a Proxxon, db 250. Their bottom range lathe, with nothing fancy but perfect for this kind of work.
I'm going to make a bishop to show you the various stages it took. When i thought of making the set i studied chess pieces and their variety of designs to get a feel for them and their mutual proportions. I turned each separate piece (a pawn, a rook, etc) to the idea i thought it had to be. Holding it in my hand made it even more clear if and where it might needed change. Most pieces were fine straight on, and that piece then became my template for the remaining pieces of the same shape.
I rejected the first bishop i turned for the chess set. It looked a bit too 'fat', too 'thick'. But i kept it and now it comes in handy to show you how i made them.
I loaded the lathe with stock and started with the knob that's on the top of the bishop's head.
That gave me a marker to hold the first piece in line with, as you can see below. I marked out distinct features to guide. The rim or collar underneath the bishops head, and its feet at the bottom. You really need to keep one eye closed, and the other dead straight in front of your work as you mark out, or you'll be way off '-)
On the left i focused on the shape of his head first, taking away material slowly and checking it often to see where it might need adjusting. Because you can't add but only take away material you shouldn't rush it. When reasonably happy i continued with roughing his collar as you can see above.
With its head sort of 'free standing' it seemed easier to judge its shape and size to the original. I corrected the head just ever so slightly and then stopped turning. Because the neck under its head will become relatively slim it's more convenient to finish & polish the top section while it's still firmly attached to the stock.
Quite handy to do so is a sanding paper called Micro Mesh. Used in the car industry for paint jobs, it comes backed on durable cloth which you can stretch without breaking the sanding surface. It can be used wet and can be rinsed out/washed afterwards. You can buy sets, giving you a selection of grades from 2000 to 12000, so you always have the right one at hand. I started out with 4000 and only when all the tool marks were gone i got up in grade. In this case 8000 and finally 12000.
With the head now finished i slimmed down its neck and again lined it up to match top knob, collar and feet. Making multiple pieces without the aid of a duplicator you can't match up enough. It's better do have done it too much, then to rush it and finding out you've overdone a section which you can't repair or fix.
The feet were separated from the mid section with a needle file. For that i used the 'rat's tail'. I made sure to use the same spot on the needle file, in this case a quarter inch from the thin tip. Creating the rim i made sure I gently held that part of the file in the stock so the rim between feet and belly has a constant hight in all the chess pieces.
After matching up to align again, the feet were given a decorative rim and then the whole piece was polished where it still needed. And finally he was cut of to stand left of his firstborn twin brother, who's on the right.
It's not quite there as he seems a wee bit taller and a little bit slimmer in the neck. Maybe he's just in better condition?! Anyway, just my way to hopefully answer some of your questions.
Have a wonderful day,
ps. I'll be doing a same sort of posting on the chess board later but, because i haven't taken any pictures of building that one neither, a new one is drying under pressure as we speak (note to myself; don't forget to take pictures during build! :)
